HOW TO: Activating a Gizmo such as Translate, Rotate, Scale, and Local Space

HOW TO: Activating a Gizmo such as Translate, Rotate, Scale, and Local Space

Activating Gizmo Tools

  1. Login to Client
  2. Load a Project / Import a dataset to the Scene
  3. Left-Click the dataset so that it’s highlighted

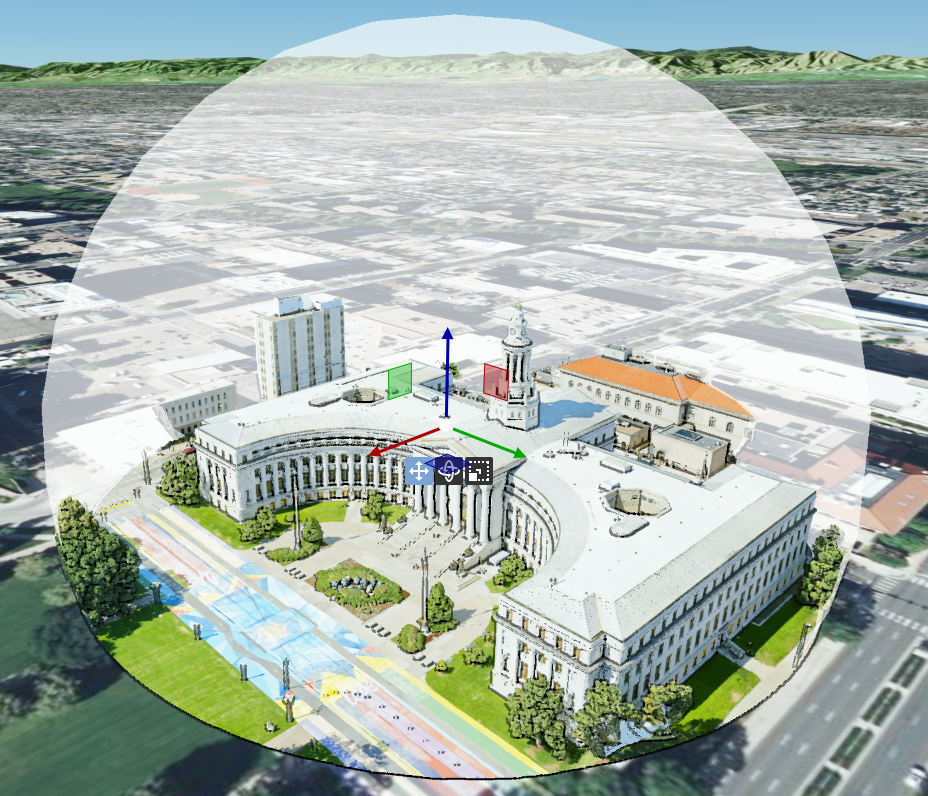

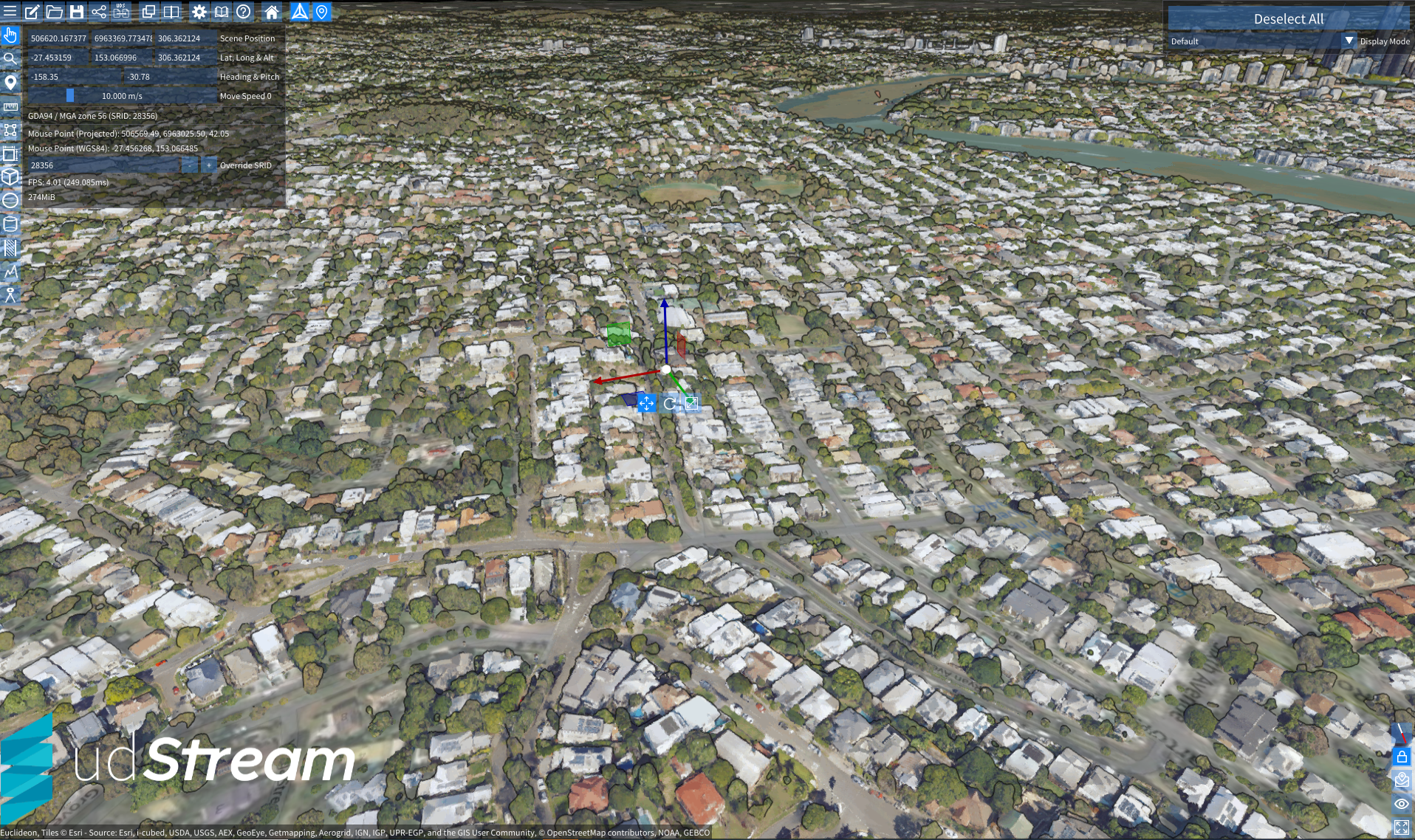

  4. Show/Hide Gizmo and Gizmo Local Space button will now be visible in the top left corner of the Scene Window

  5. The user can Left-Click to Select the desired Gizmo tool, or use their shortcut keys [B] = Translate, [N] = Rotate, [M] = Scale, [C] = Local Space


TIP: If the user hovers their mouse cursor over the gizmo tool, it will display a tooltip which will also display the corresponding shortcut key.
