HOW TO: Add a View Shed

HOW TO: Add a View Shed

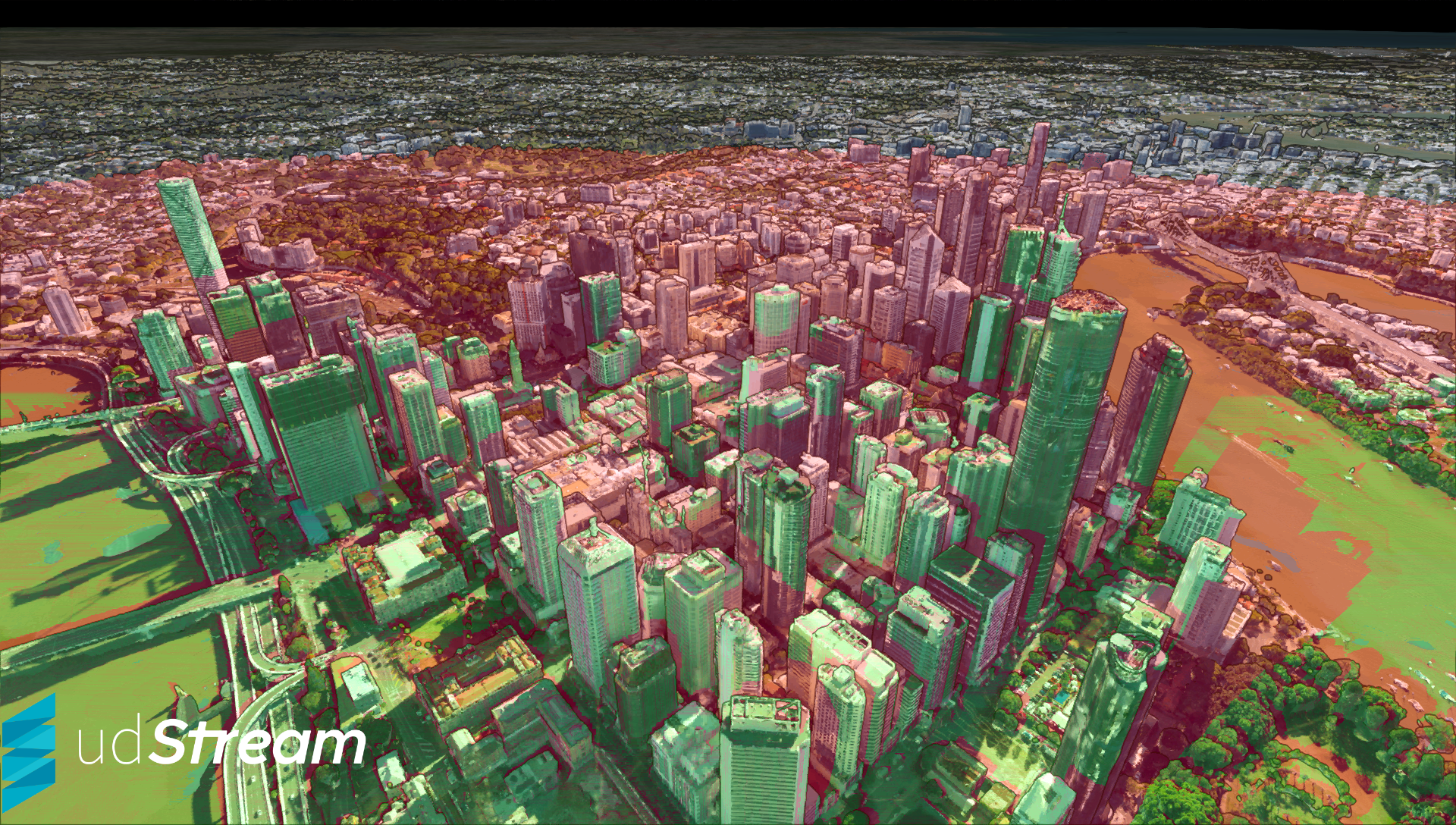

Adding a View Shed

This is available as a Premium feature. For more information, contact us.
  1. Login to Client
  2. Click on the Scene Profile Menu button
  3. Click on the  or press Ctrl + V
  4. Click on the Scene to place the viewshed

Note: The view shed can be adjusted with the Gizmo tools to the desired height. The “View Distance” and “Colours” of the view shed can be edited from within the Scene Explorer window.
