HOW TO: Multiple Viewports and Enabling Map Mode

HOW TO: Multiple Viewports and Enabling Map Mode

Adding another Viewport

This is available as a Premium feature. For more information, contact us.
  1. Login to udStream
  2. On the upper-right side of the Scene window, select Toggle Viewport

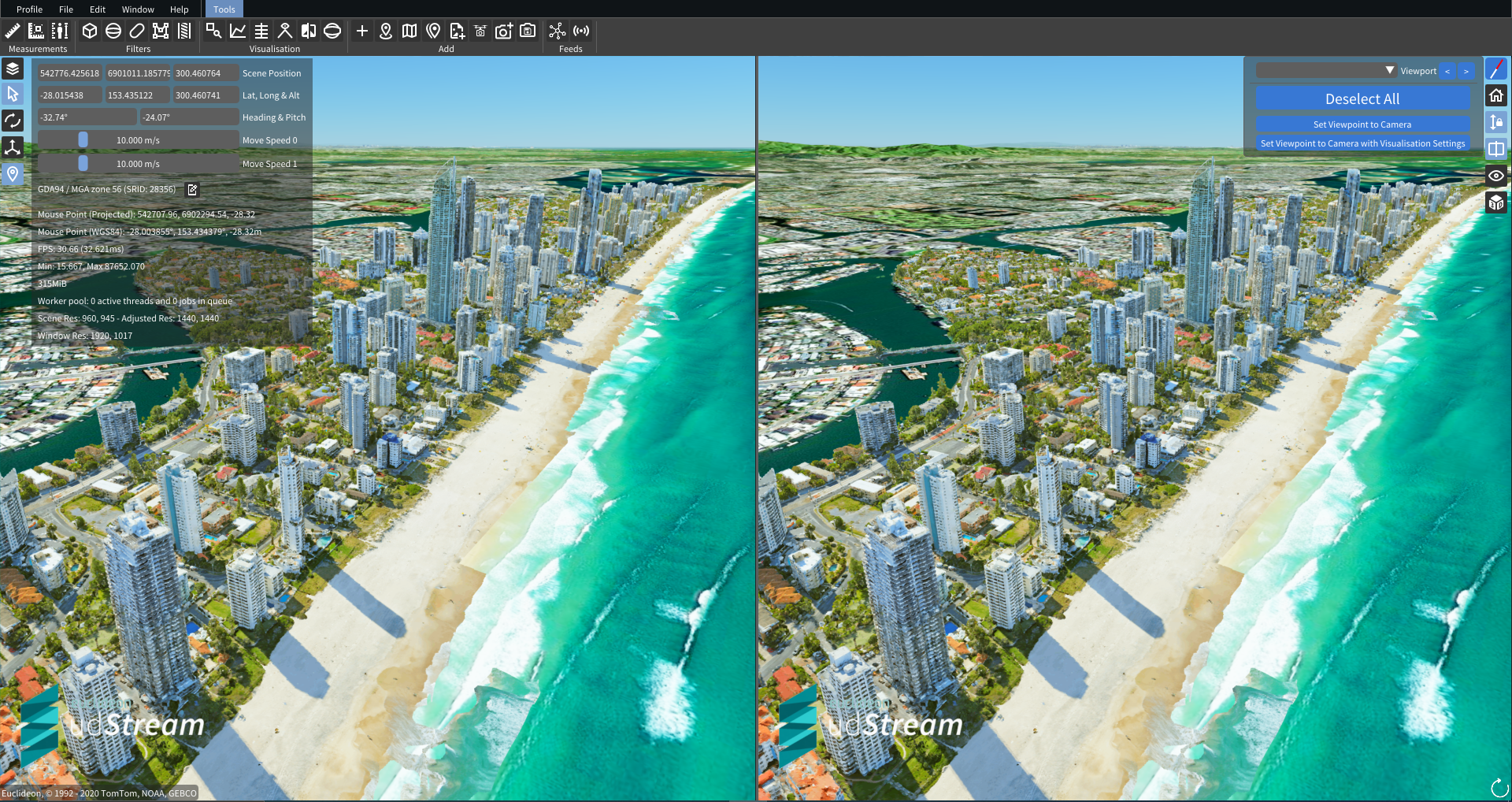

  3. A second Viewport will appear
    1. You can move independently within this 2nd viewport
    2. All Visualisation and Map Options will carry over to the 2nd viewport
    3. Moving to an object via Scene Explorer will move both viewports into the object

Enabling Map Mode

  1. With the 2nd vieport enabled, an option for Map Mode Viewport will appear under Settings > Appearance

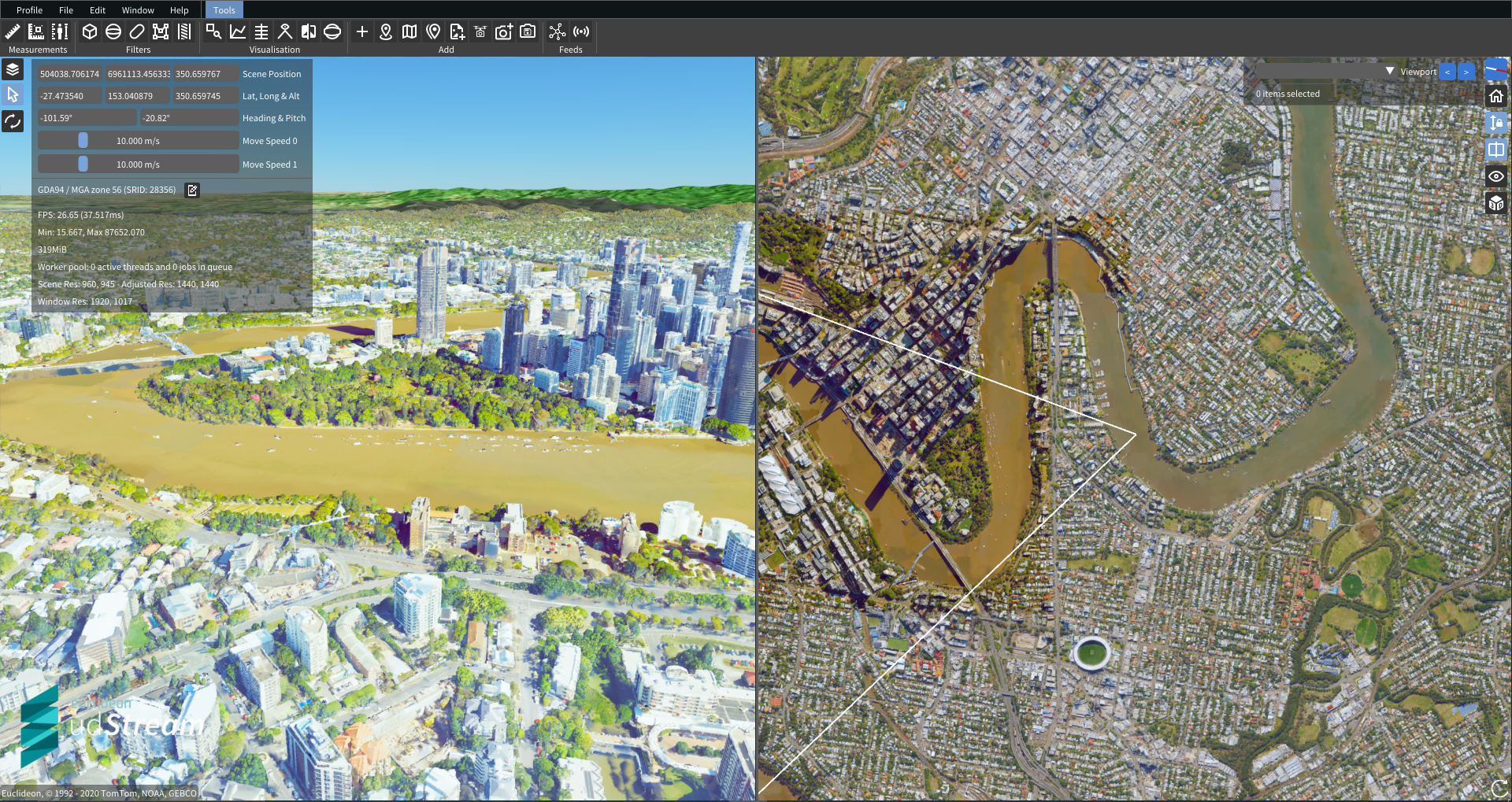

  2. When activated, the 2nd viewport will automatically be set to a bird's eye view of the 1st viewport

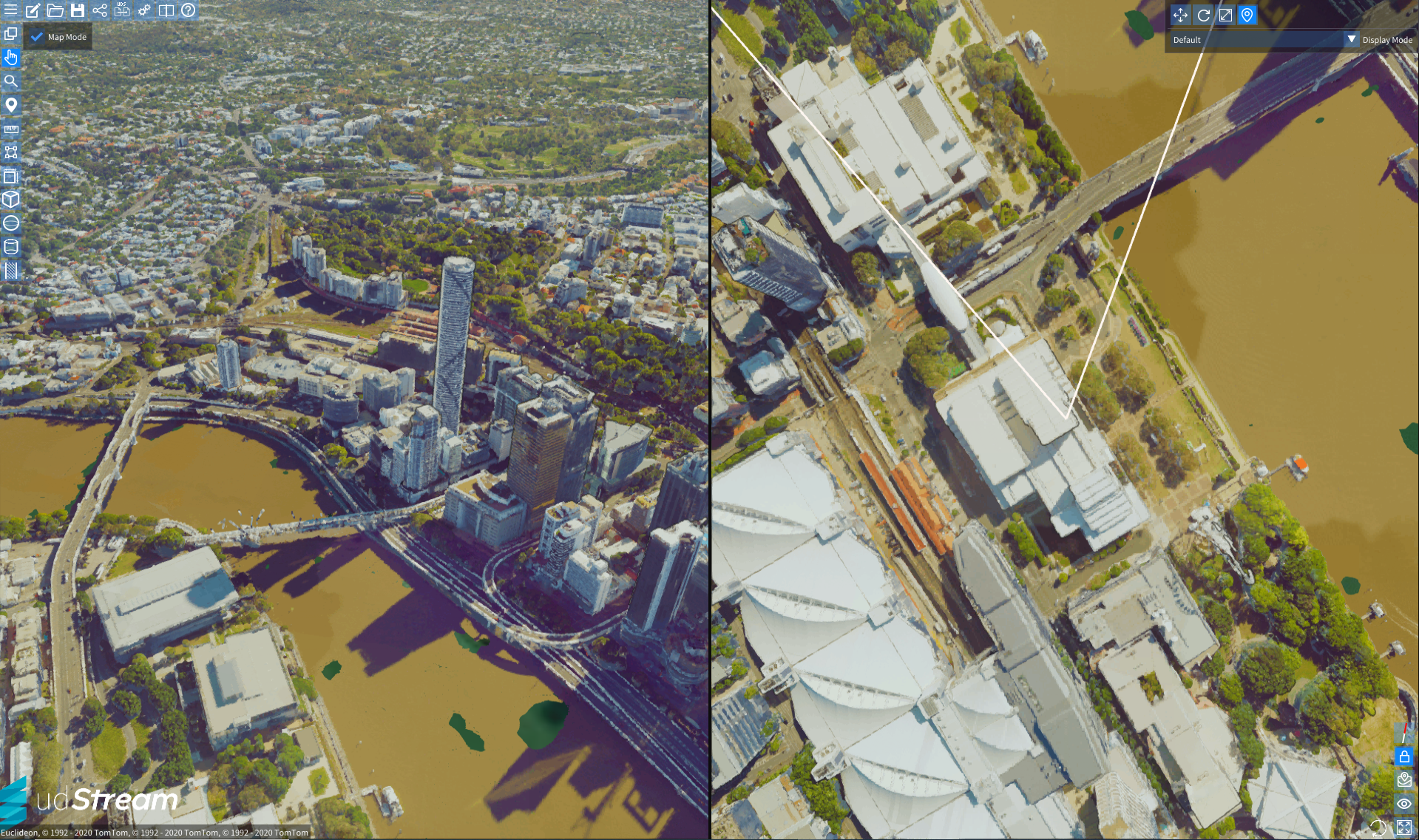

  3. The 2nd viewport will move relatively to your position in the 1st viewport, and will be locked into the bird's eye view

  4. You have the option to zoom in and out and move around between viewports by hovering on the viewport
